Reference > Solution Designer > Design > eForms Object > eForms Components > General Settings

Display Tab

Scroll

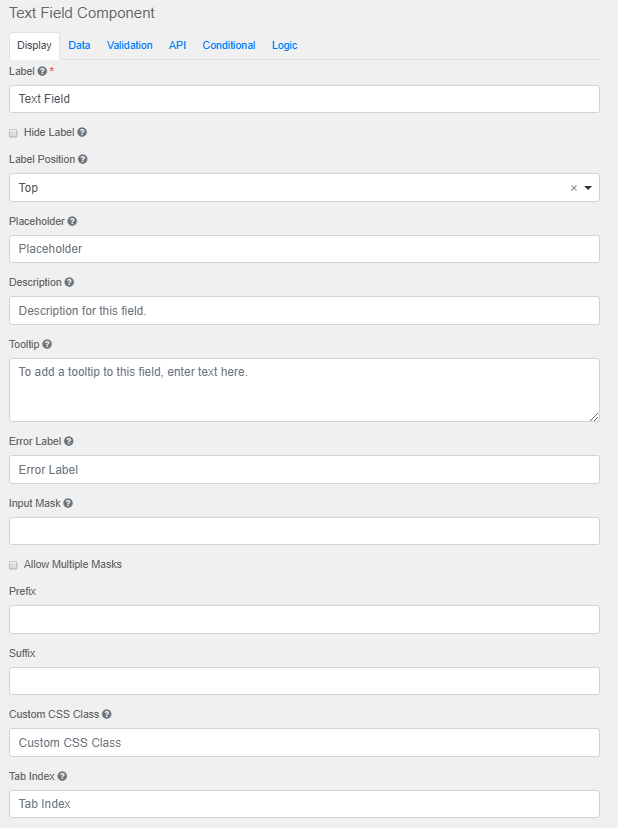

SD_R_Design_eForms_Comp_GS_001a

Label

The name or title for this component.



Hide Label

Hide the label of this component. This setting will display the label in the form builder, but hide the label when the form is rendered.



Label Position

Position for the label for this field.



Label Width

The width of label on line in percentages.



Label Margin

The width of label margin on line in percentages.



Placeholder

The placeholder text that will appear when this field is empty.



Action

The Action to be performed by the button



Save State

The state in which to save the submission when the button is pressed.



Theme

The color theme of this button



Size

The Size of the button



Left icon

This is the full icon class string to show the icon.



Right icon

This is the full icon class string to show the icon.



Shortcut

Shortcut for this component



Description

The Description is text that will appear below the input field.



Tooltip

Adds a tooltip icon to the side of this field.



Error Label

The label that will display for the field when a validation error message is shown.



Input Mask

An input mask helps the user with input by ensuring a predefined format. For a phone number field, the input mask defaults to (999) 999-9999.

9: numeric

a: alphabetical

*: alphanumeric



Allow Multiple masks

This setting will allow you to set multiple input masks for the field. The mask is selected by the user via a dropdown list and will dynamically switch the mask for the field when selected.



Prefix

The text to show before a field. An example is ā€˜$ā€™ for money.



Suffix

The text to show after a field. An example would be ā€˜lbsā€™ for weight.



Custom CSS Class

A custom CSS class to add to this component. Multiple class names can be added, separated by a space.



Tab Index

Sets theĀ tabindexĀ attribute of this component to override the tab order of the form.



Multiple Values

If checked, multiple values can be added in this field. The values will appear as an array in the API and an ā€œAdd Anotherā€ button will be visible on the field allowing the creation of additional fields for this component.



Enable Spell Check

This setting will enable spell check on the field.



Protected

If checked, this field is for input only. When being queried by the API it will not appear in the properties.



Persistent

If checked, the field will be stored in the database. For a field to not be saved, this box should be unchecked. This is useful for fields like password validation that shouldnā€™t save.



Encrypted

Encrypt this field on the server. This is a two-way encryption, which is not be suitable for passwords.



Hidden

A hidden field is still a part of the form JSON, but is hidden when viewing the form is rendered.



Initial Focus

Make this field the initially focused element on this form when rendered. Only one component on this form or wizard page can carry the Initial Focus setting.



Hide Input

Hide the input when viewing the form from the front end browser. This does not encrypt on the server. Do not use for passwords.



Disabled

Disable this field on the form.



Show Label in DataGrid

Show the label of this component when in a datagrid.



Table View

If checked, this value will show up in the table view of the submissions list.

SD_R_Design_eForms_Comp_GS_001b

Show Word Counter

Displays the number of words in the field.



Show Character Counter

Displays the number of characters in the field.



Block

Blocks the function from being used until it has been unchecked.



Disable on Form Invalid

Disables the field if the form is invalid.



Multiple Values

Allows multiple values to be entered for this field.



Clear Value when Hidden

Clears the value when the field is hidden



Hidden

Remains part of the form but is hidden from view.



Hide Input

Hides the input in the browser.



Disabled

Disables the form input.



Initial Focus

The field becomes the initially focused field on the form.
