Call REST Service

RestCall

Call Rest Service: This workflow task enables Administrators to call an external web services from an automatic workflow task without coding.

sd_r_workflow_RESTCall_001

Name

Enter an intuitive name for the workflow task.

Duration

For automatic tasks this can be left at 0.

Type (read only)

Task type is set the following type by the system: Call REST Service

Edit...

Opens a dialog that lets you configure the REST call settings.

sd_r_workflow_RESTCall_001a

REST requests
	Add a new REST call.
	Edit a rest request.
	Delete a REST request.
	Move the REST request up in the list. By default, the calls are executed top to bottom.
	Move the REST request down in the list.

sd_r_workflow_RESTCall_001b

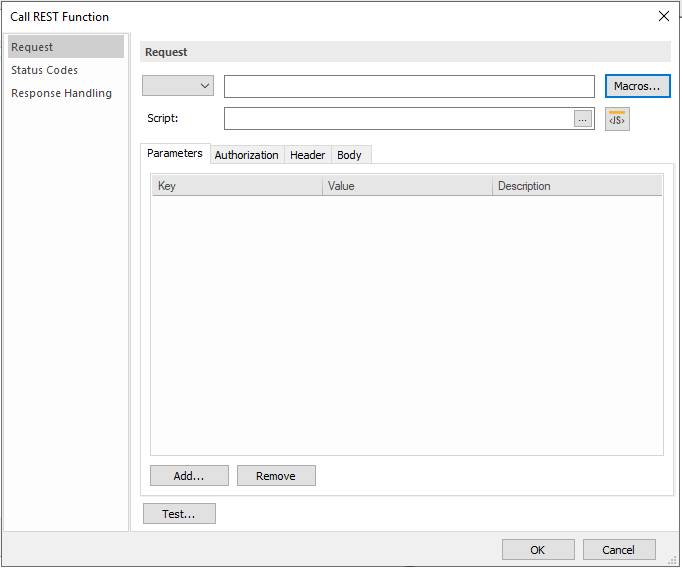

Name:

Add a name for the REST call.

Scripting ID:

Add a scripting ID for the REST call

Drop-down List
GET:	Retrieves data from a server at the specified resource.
POST:	Sends data to the API server to create/update a resource.
PUT:	Sends data to the API to update or create a resource. The difference is that PUT requests will always produce the same result.
DELETE:	Deletes the resource at the specified resource.
PATCH:	Similar to POST and PUT options, but only applies to partial modifications to the resource.

URL Field

The placeholder for the URL of the Web Service call.

Macros...

Opens a dialog with all available macros.

Script

An initialization script can be created, which will be executed before the execution of the field assignments. Also, variables and functions could be defined here that will be available for the assignment scripts.

Test...

Runs a test API call that checks whether a communication can be made to the Web Service and if a response can be achieved. Opens a dialog to demonstrate the outcome of the test.

Parameters

List the parameters required to send/receive.

Add

Add a Parameter.

Remove

Remove a Parameter.

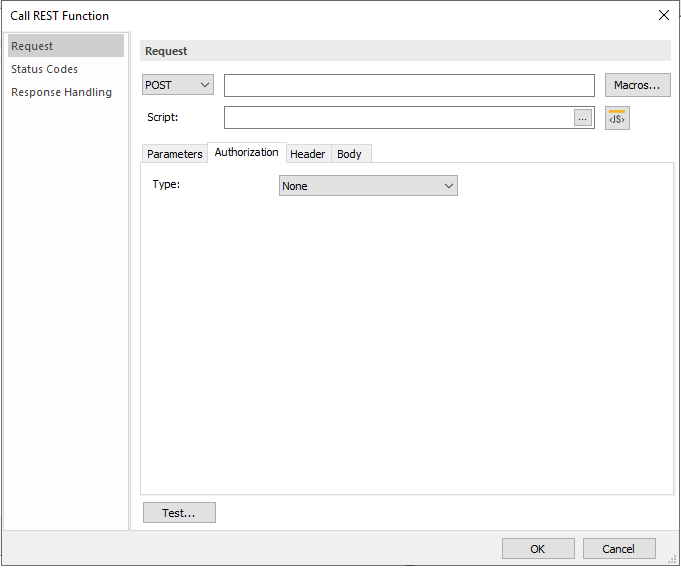

Authorization

Type:

Select the authorization type (i.e. Basic, Bearer Token, OAuth (Authorization Code), OAuth (Client Credentials)).

Info

Note:

•With OAuth, a client application needs to be created in order for it to be able to integrate.

•The OAuth redirect URI is the following one: http://localhost:64957/authorize

•The OAuth redirect URI can be customized for special cases using Regkey: HKEY_CURRENT_USER\SOFTWARE\Therefore\Client\OAuthRedirectUrl (STRING)

sd_r_workflow_RESTCall_001c

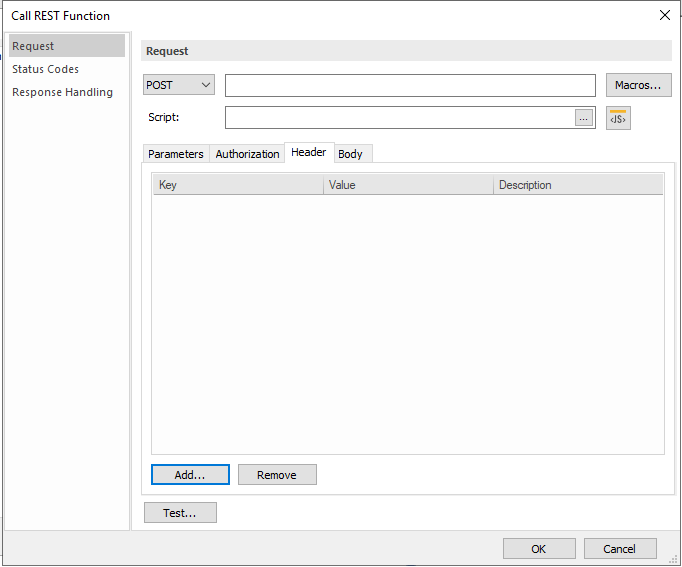

Header

List the Headers required to send/receive.

sd_r_workflow_RESTCall_001c1

Document

If a document should be sent to a 3rd party service via the REST call, configure the content and sending method.

sd_r_workflow_RESTCall_001d

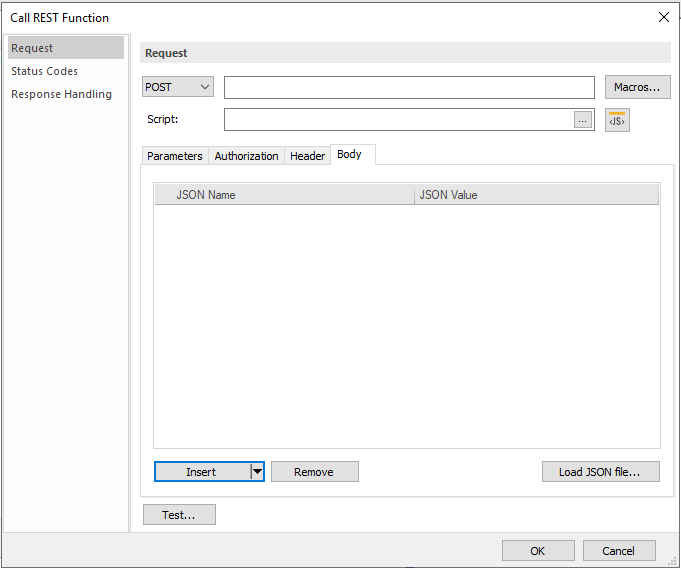

Body

List the JSON Values and Objects.

Insert:

Select either a JSON Object or Value to be listed.

Remove:

Remove a JSON Object/Value.

Load JSON request:

Upload a JSON file into the Body. The JSON can either be added from a file on your device or directly from your clipboard.

sd_r_workflow_RESTCall_002

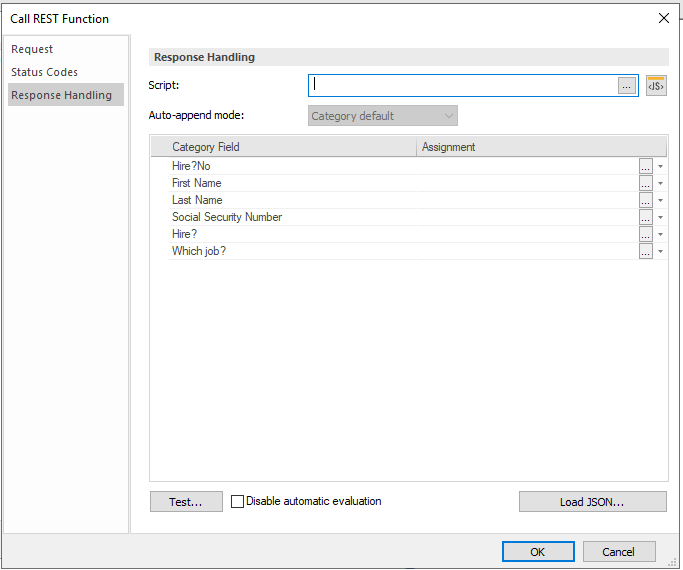

Response:

Define the response that should be received from the 3rd party service.

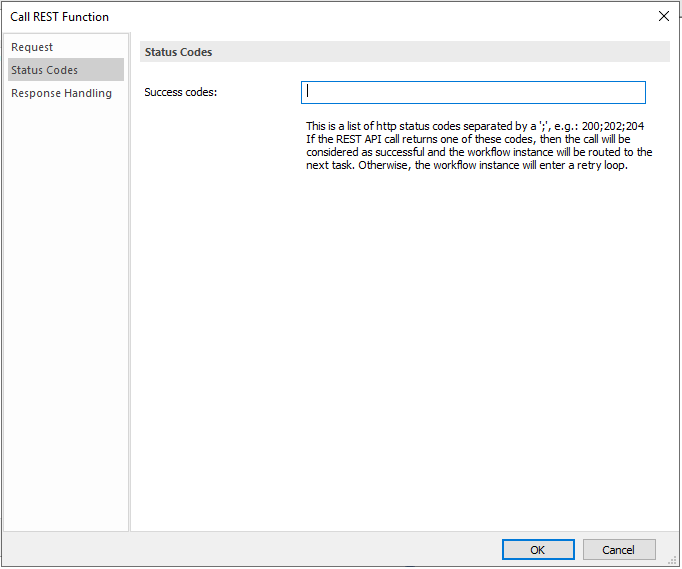

Success codes:

List the success codes that the API call should consider to be successful.

Script

Load JSON file:

Upload a JSON file into the Body. The JSON response can either be loaded from a file on your device or directly added from your clipboard.

info

Note: REST calls were designed for making outgoing calls to 3rd party applications. Although it’s possible to use REST calls to call the Therefore API, to solve advanced requirements, the feature is limited especially when working with index data information.
