Mapping No.15 - Posted purchase invoice (index data transfer)

Scroll

Mapping No. 15 is responsible for retroactively transferring into Thereforeā„¢ the index data of a purchase invoice created by an XML import in NAV after its posting. The data is taken from NAV table 122 (Purch. Inv. Header) and transferred into the index data fields of the purchase invoice created in the previous step in the Thereforeā„¢ archive.

Figure 42: Mapping No. 15 (Transferring purchase invoice index data from Navision to Thereforeā„¢)

Figure 42: Mapping No. 15 (Transferring purchase invoice index data from Navision to Thereforeā„¢)

As long as this mapping is activated, the index data fields will be transferred to Thereforeā„¢ when the purchase invoice is posted. The updated Thereforeā„¢ document can be viewed in NAV by running the View function under Actions on the posted purchase invoice card and then clicking on the Flow-Field of the respective line (see Viewing linked documents).

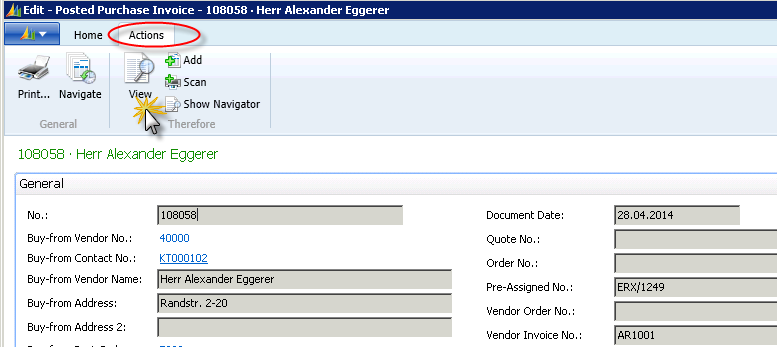

Figure 43: Posted Purchase Invoice (Thereforeā„¢ functions)

Figure 43: Posted Purchase Invoice (Thereforeā„¢ functions)
