Thereforeâ„¢ Help

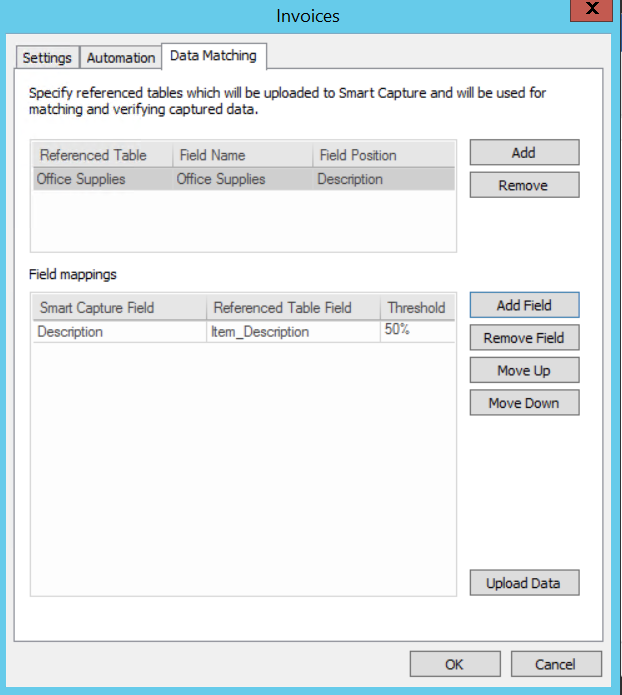

Opens up the Data Matching dialog for Thereforeâ„¢ Smart Capture.

Add

Click this button to add a new referenced table or double-click on an existing referenced table to update it.

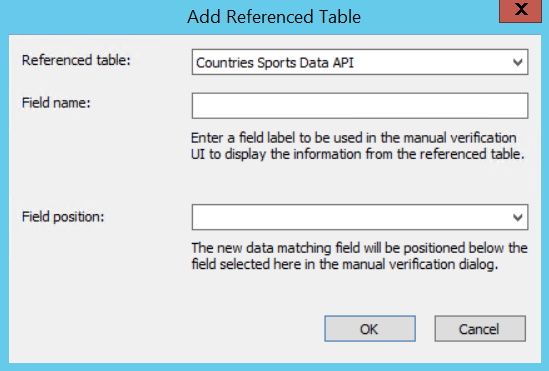

Referenced table:

Choose a referenced table from the drop-down menu.



Field name:

Choose an intuitive name for the field label.



Field position:

Define a position in which the field will be displayed.



OK

Save the configuration.



Cancel

Return to the previous dialog without saving your changes.



Remove

Removes selected referenced table.



Field mappings

Map referenced table fields to Smart Capture fields, and set a confidence threshold pertaining to the field.



 Add Field

 Add new field to be mapped

 Remove Field

 Remove a selected field.

 Move up

 Move the selected field up in the list of fields. Fields will be processed by the system from top to bottom.

 Move down

 Move the selected field downward in the list of fields.



Upload Data

Opens the Upload Data menu.



OK

Save your configuration.



Cancel

Discard the changes you made to the configuration.

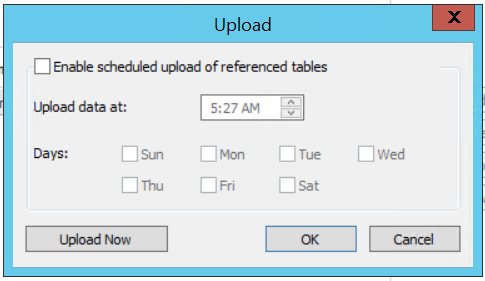

Enable scheduled upload of referenced tables

Click this box to have data automatically uploaded to the Smart Capture server on a schedule of your choice.



Upload data at:

Chose a time of the day to have your data automatically uploaded.



Days:

Select the day(s) on which the data should be automatically uploaded to the Smart Capture server.



Upload Now

Click this button to manually upload the data to the Smart Capture configuration.



OK

Save your settings and return to the Data Matching tab.



Cancel

Don't save your data and return to the Data Matching tab.
