Expanding the 'Tree Views' object will display the configured tree views for this category.

Right-clicking on a tree view opens a context menu from which a new tree view can be created. Existing tree views can be edited by double clicking on them.

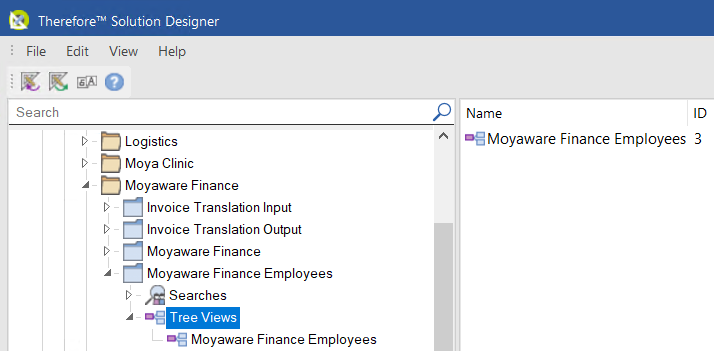

SD_R_Design_Categories_TreeViews_002



New Tree View

This will open the dialog for creating and editing tree views.



Security

View and edit role-based access for anything below this node.

Tutorials: Role-based access

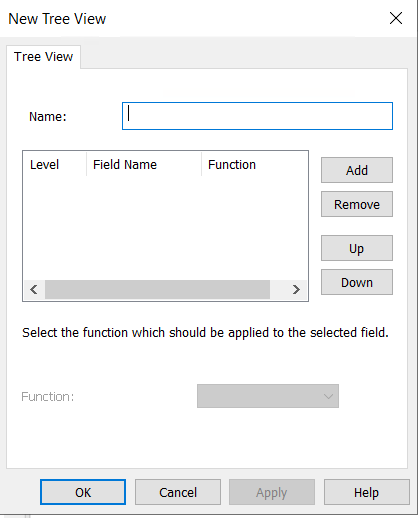

SD_R_Design_Categories_TreeViews_001

Name

The name of the tree view. This name will be displayed in Windows Explorer as the top level folder's name.



Add

A new folder level can be added based on one of the categories index fields. Existing levels can be deleted by selection and then clicking 'Remove'. The hierarchy of the levels can be changed using the 'Up' and 'Down' buttons.



Function

This allows multiple levels to be created from one index field by using only a portion. On date fields the options are 'None', 'Month' 'Year' or 'Month/Year'. On string fields the options are 'None' or 'First Character'.
