Checkbox

Scroll

SD_R_Design_eForms_Comp_Check_001

A check box is a Boolean value input field. It will either be on or off.

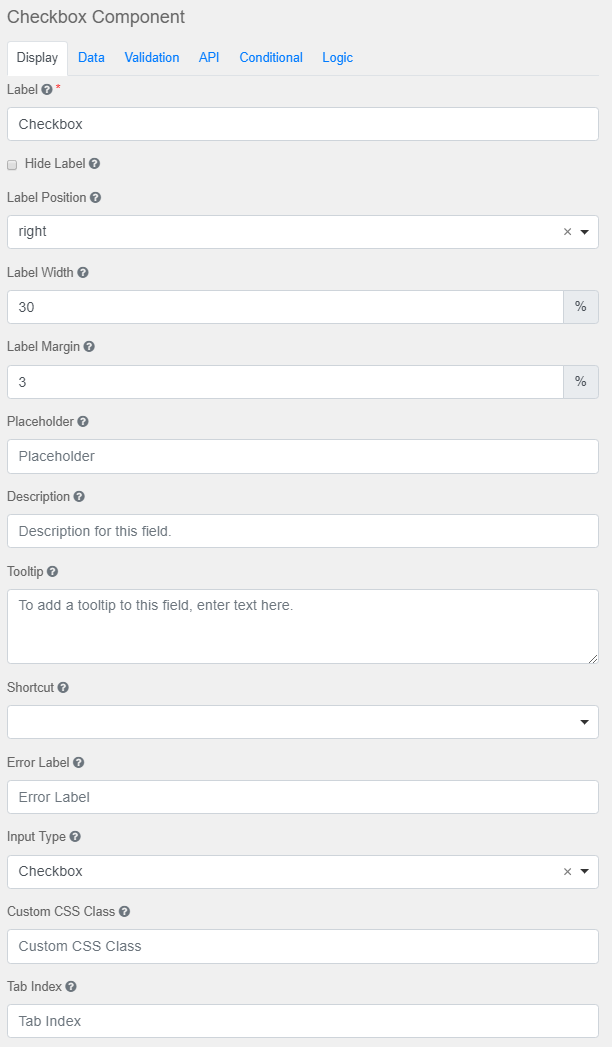

Display Tab

SD_R_Design_eForms_Comp_Check_002

Label

The name or title for this component.

Hide Label

Hide the label of this component. This setting will display the label in the form builder, but hide the label when the form is rendered.

Label Position

Position for the label for this field.

Label Width

The width of label on line in percentages.

Label Margin

The width of label margin on line in percentages.

Placeholder

The placeholder text that will appear when this field is empty.

Description

The Description is text that will appear below the input field.

Tooltip

Adds a tooltip icon to the side of this field.

Shortcut

Shortcut for this component.

Error Label

The label that will display for the field when a validation error message is shown.

Custom CSS Class

A custom CSS class to add to this component. Multiple class names can be added, separated by a space.

Tab Index

Sets the tabindex attribute of this component to override the tab order of the form.

SD_R_Design_eForms_Comp_Check_003

Clear Value when Hidden

Clears the value when the field is hidden

Hidden

Remains part of the form but is hidden from view.

Hide Input

Hides the input in the browser.

Disabled

Disables the form input.

Initial Focus

The field becomes the initially focused field on the form.

Data Tab

SD_R_Design_eForms_Comp_Check_004

Default Value

Overrides the placeholder text. This will be the value for this field before user interaction.

Refresh On

Refresh data when another field changes.

Clear Value On Refresh

Clears the components value when the field has refreshed.

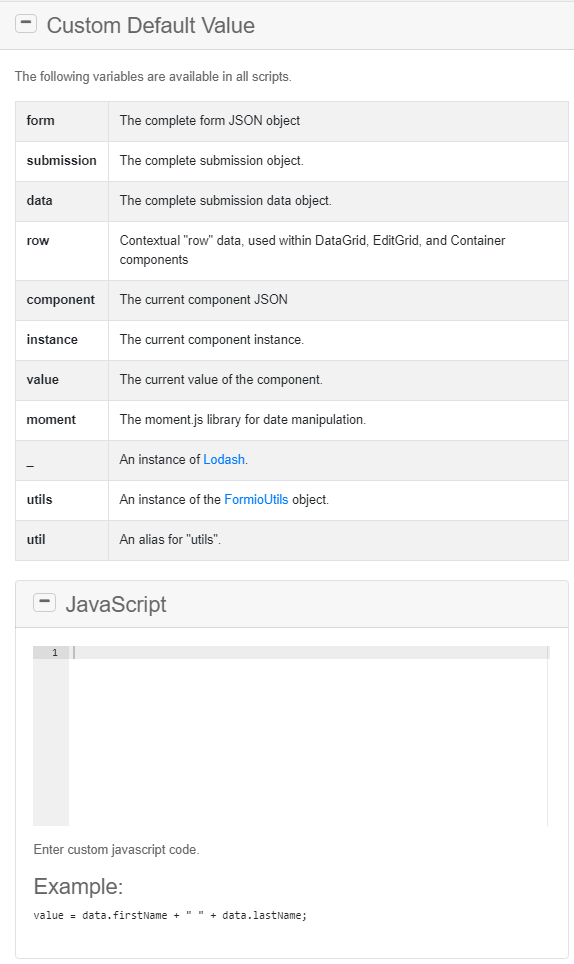

SD_R_Design_eForms_Comp_Check_005

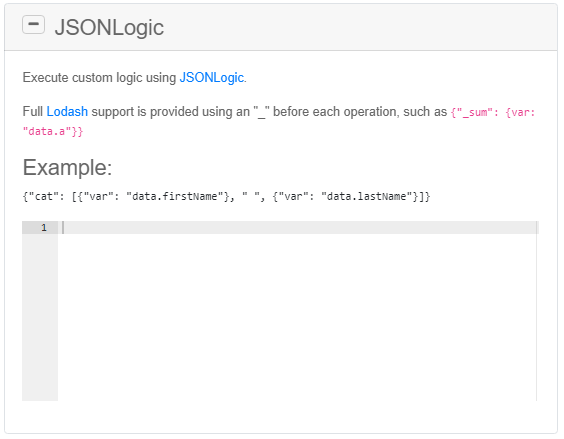

SD_R_Design_eForms_Comp_Check_006

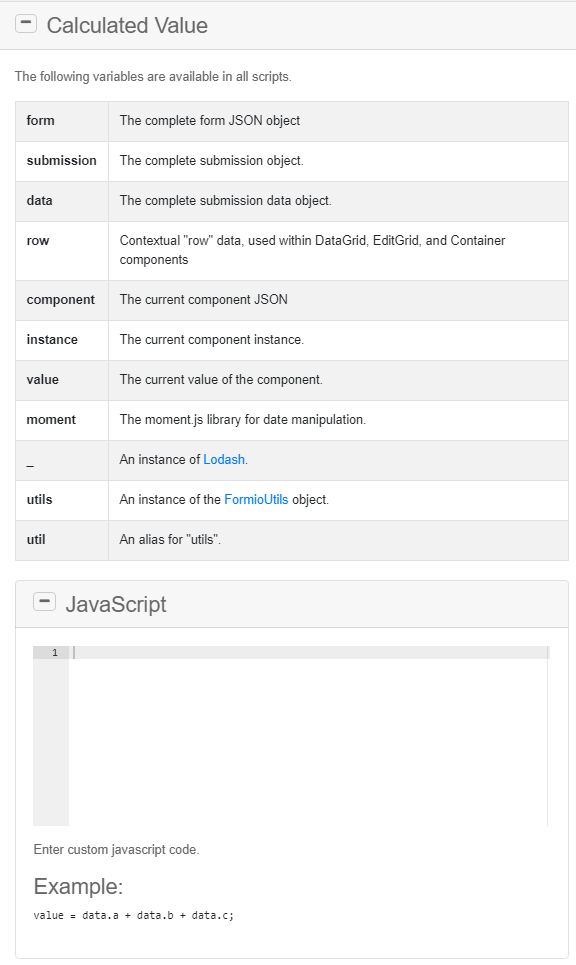

SD_R_Design_eForms_Comp_Check_007

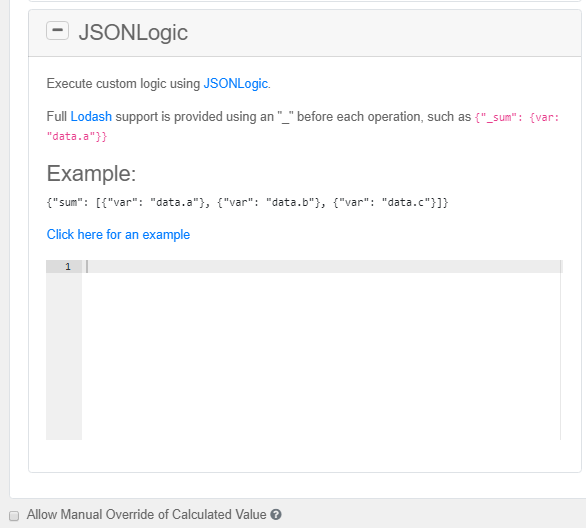

SD_R_Design_eForms_Comp_Check_008

Allow Manual Override of Calculated Value

Manually overrides the calculated value.

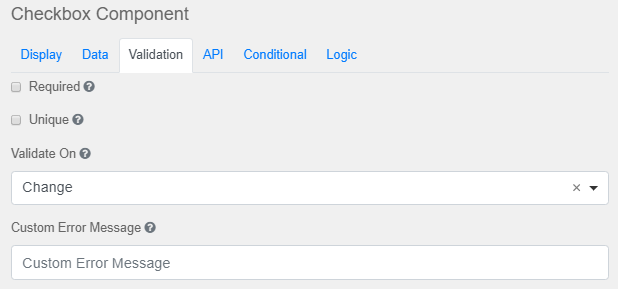

Validation Tab

SD_R_Design_eForms_Comp_Check_009

Required

A required field must be completed before a form can be submitted. Indicated by an asterisks on the form.

Unique

Ensures that the data submitted for the field is unique.

Validate On

Determines when this component should trigger front-end validation.

Custom Error Message

Custom error message displayed when an error occurs.

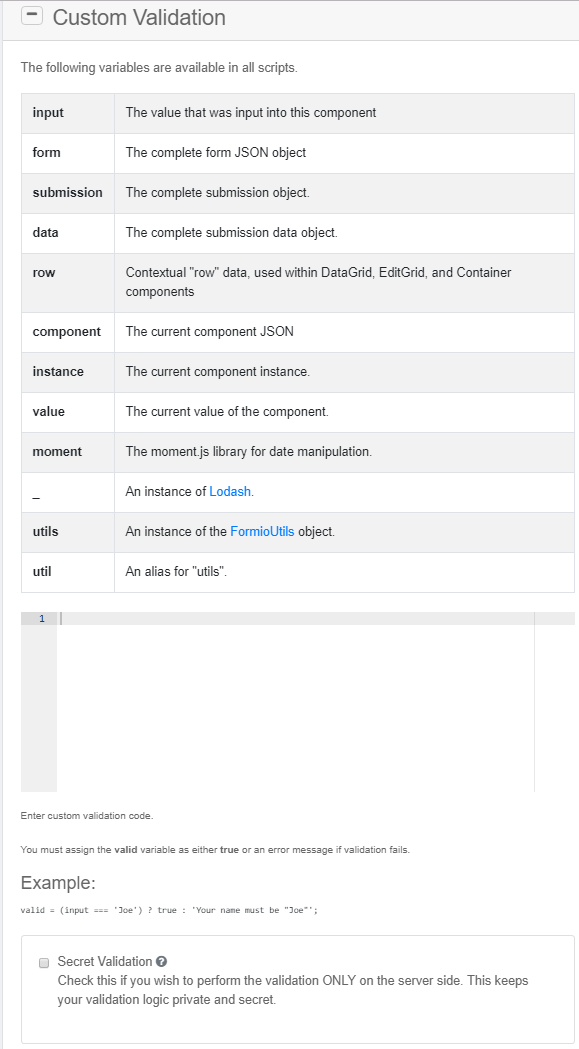

SD_R_Design_eForms_Comp_Check_010

Secret Validation

Check this to perform validation on the server side only; this maintains the privacy of the validation logic.

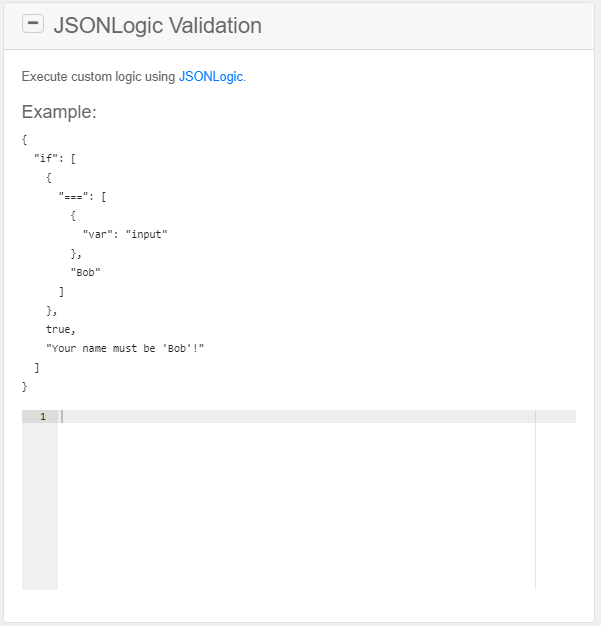

SD_R_Design_eForms_Comp_Check_011

API Tab

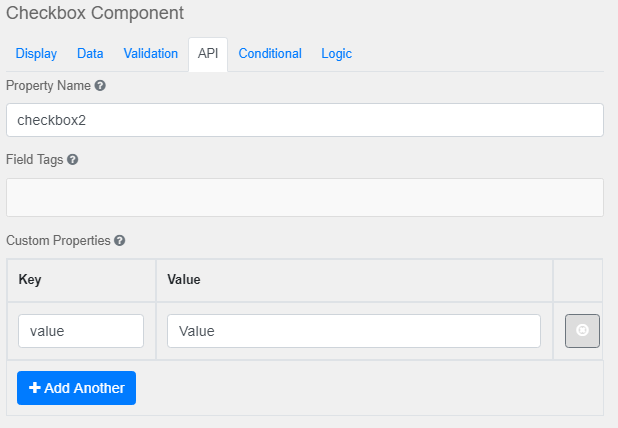

SD_R_Design_eForms_Comp_Check_012

Property Name

Names the field for the API endpoint.

Field Tags

Tags the field for use in custom logic.

Custom Properties

Enables the configuration of any custom properties for this component.

Add Another

Adds another configuration row.

Conditional Tab

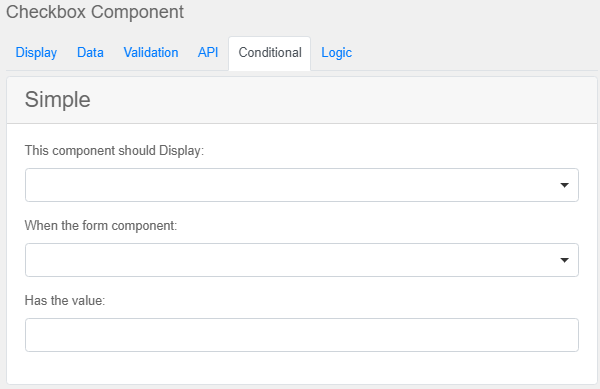

SD_R_Design_eForms_Comp_Check_013

This component should Display

Select between 'True' or 'False'

When the form component

Select from the list of form components.

Has the value

Enter a value for the condition.

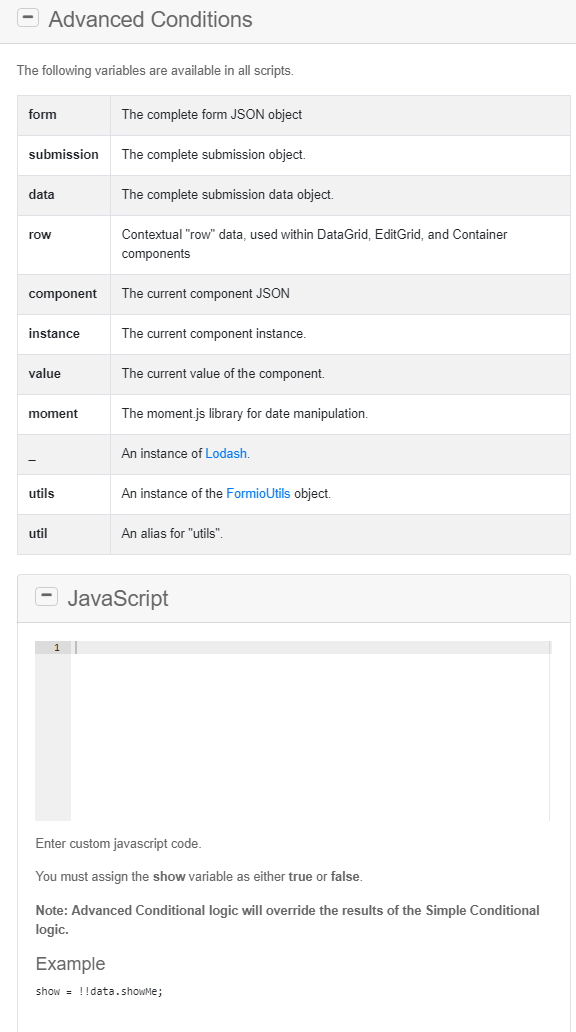

SD_R_Design_eForms_Comp_Check_014

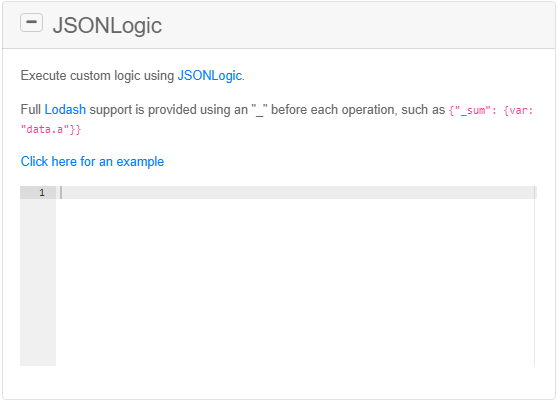

SD_R_Design_eForms_Comp_Check_015

Logic tab

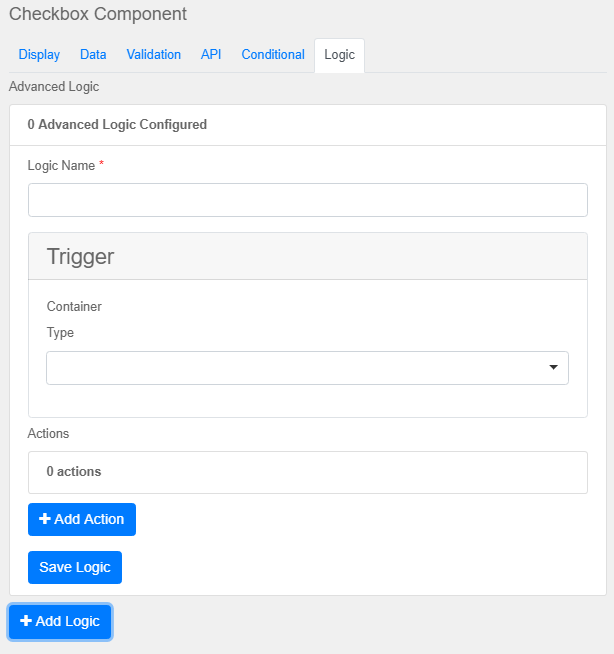

SD_R_Design_eForms_Comp_Check_016

Logic Name

Gives the logic a label

Type

Select between Simple, Javascript, JSON Logic or Event.

Add Action

Adds another action to the logic.

Save Logic

Saves the current logic list.

Add Logic

Adds another Logic for configuration.
