Thereforeā„¢ Help

The Thereforeā„¢ Solution Designer includes an integrated workflow module which makes it possible to create, modify and save Thereforeā„¢ workflow processes. Right-clicking on a specific workflow opens a context menu.

SD_T_Workflow_New_Workflow_Process_001

New Process...

Create a new workflow process.



Settings...

Opens the workflow settings.



Export...

Thereforeā„¢ allows workflow process definitions to be exported as a XML file. Exported processes can be later imported into this, or other systems. It is also possible to just export the latest version of a workflow.



Security Report...

The security report contains all security settings for all workflows. It allows you to document the final security configuration after installing a system. The security report is stored as a ".csv" file which can be viewed with Microsoft Excel.



Security...

Opens the security dialog.

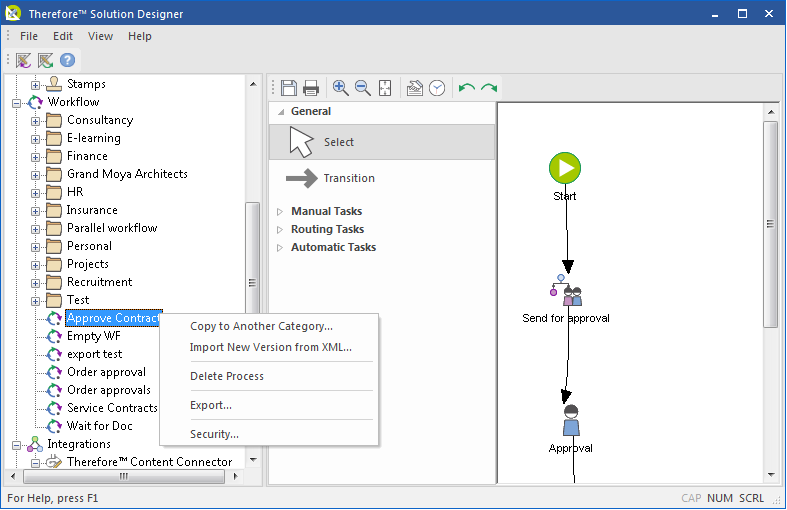

Right-clicking on a specific workflow display another context menu.

SD_R_Workflow_002

Copy to another category

The user can copy the workflow to a new category. The workflow must be given a new name.



Import new version from XML...

This allows a workflow to be updated with a different version of the same workflow exported from another Thereforeā„¢ system. After the import the new version workflow must be activated.



Delete Process

The workflow can be deleted.



Export...

Thereforeā„¢ allows workflow process definitions to be exported as a XML file. Exported processes can be later imported into this, or other systems. It is also possible to just export the latest version of a workflow.



Security...

Opens the security dialog.
