The hit-list can be dynamically filtered by typing into the Search hit-list box. The field order can be changed by dragging and dropping a field to another position. A right-click on a tab opens a context menu from which a new tab can be opened, tabs can be closed, and the hit-list can be refreshed. A right-click on one of the headers opens a context menu.

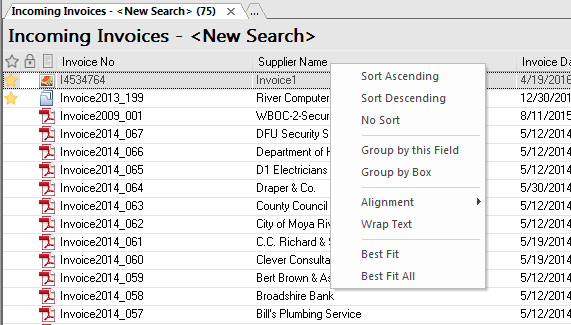

NV_R_UI_Panes_Hit_list_Pane_Hit_List_Layout_001

Sort Ascending/Descending

Sorts the list, by the selected column, in ascending/descending order.  Sorting can also be done by a simple click on the field header.  Multiple fields can be used for sorting by holding sown the SHIFT key.



No Sort

The ascending/descending arrows are removed from the field headers, but the sort results are left unchanged.



Group by this field

The selected filed is used to group the documents.  The field is removed from the header and placed in a box above the hit-list.

NV_R_UI_Panes_Hit_list_Pane_Hit_List_Layout_002

Group by box

An area is created above the hit-list where fields for grouping can be dragged and dropped to.

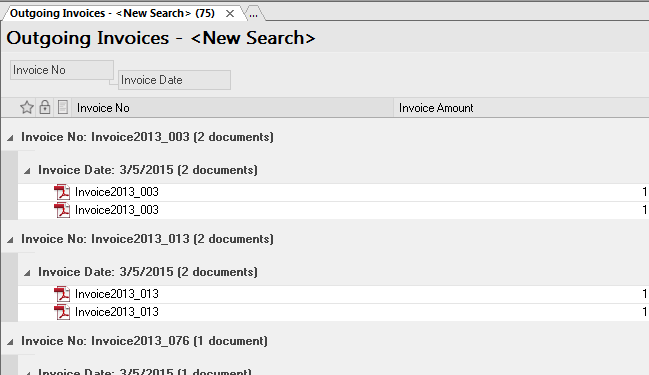

NV_R_UI_Panes_Hit_list_Pane_Hit_List_Layout_003

Alignment

The contents of the selected column can be aligned left, right or center.



Wrap Text

The contents of the selected column will be displayed on a second line if the index field is too long to fit on one line.



Best Fit

The selected column is automatically re-sized to fit the longest index fields.



Best Fit All

All columns are automatically re-sized to fit the longest index fields.
