SD_R_Design_Categories_Category_Properties_002

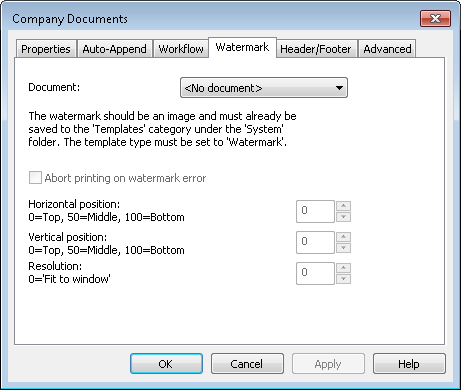

The Watermark tab allows an image to be automatically underlayed when documents are printed from Thereforeā„¢. Watermarks can be printed onto many common file types that are displayed by the



Note

By default PDF files are not displayed using the Therefore Multi-format Viewer and will hence not be printed with a watermark. To print them with watermarks the default view settings can be edited. But, please note that there may be display issues.



Document

The name of the image to be used for the watermark. The watermark should be a TIFF image and must already be saved to the Templates category under the System folder. The Template Type must be set to Form Images.



Abort printing on watermark error

If set, printing will be aborted in the event of an error caused by the watermark image.



Horizontal / Vertical Position

These settings define the position of the watermark in terms of percentage of the horizontal and vertical page position.



0,0

Top Left

50,50

Center of the page

100,100

Bottom Right



Resolution

Enter the resolution of the watermark image in DPI (dots per inch). This will determine the printed size of the Watermark. If the watermark image is larger than the printed document, the watermark image will be resized. A value of 0 will scale the image to fit the page.
