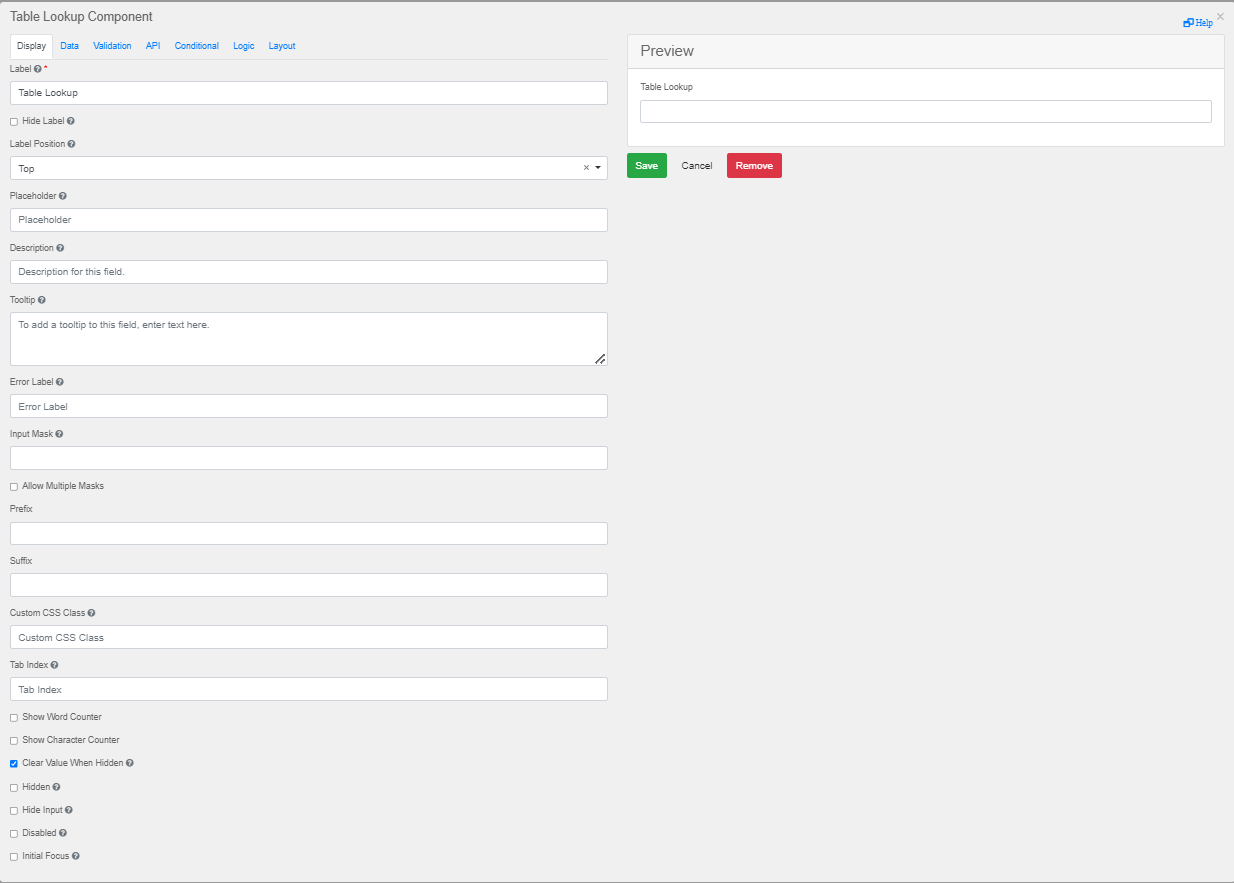

Label

The name or title for this component.

Hide Label

Hide the label of this component. This setting will display the label in the form builder, but hide the label when the form is rendered.

Label Position

Position for the label for this field.

Placeholder

The placeholder text that will appear when this field is empty.

Description

The Description is text that will appear below the input field.

Tooltip

Adds a tooltip icon to the side of this field.

Error Label

The label that will display for the field when a validation error message is shown.

Input Mask

An input mask helps the user with input by ensuring a predefined format. For a phone number field, the input mask defaults to (999) 999-9999.

●9: numeric

●a: alphabetical

●*: alphanumeric

Allow Multiple masks

This setting will allow you to set multiple input masks for the field. The mask is selected by the user via a drop-down list and will dynamically switch the mask for the field when selected.

Prefix

The text to show before a field. An example is ‘$’ for money.

Suffix

The text to show after a field. An example would be ‘lbs’ for weight.

Custom CSS Class

A custom CSS class to add to this component. Multiple class names can be added, separated by a space.

Tab Index

Sets the tabindex attribute of this component to override the tab order of the form.

Show Word Counter

Disables the number of words in the field.

Show Character Counter

Disables the number of characters in the field.

Clear Value When Hidden

Clears value when hidden.

Hidden

Remains part of the form but is hidden from view.

Hide Input

Hides the input in the browser.

Disabled

Disables the form input.

Initial Focus

The field becomes the initially focused field on the form.

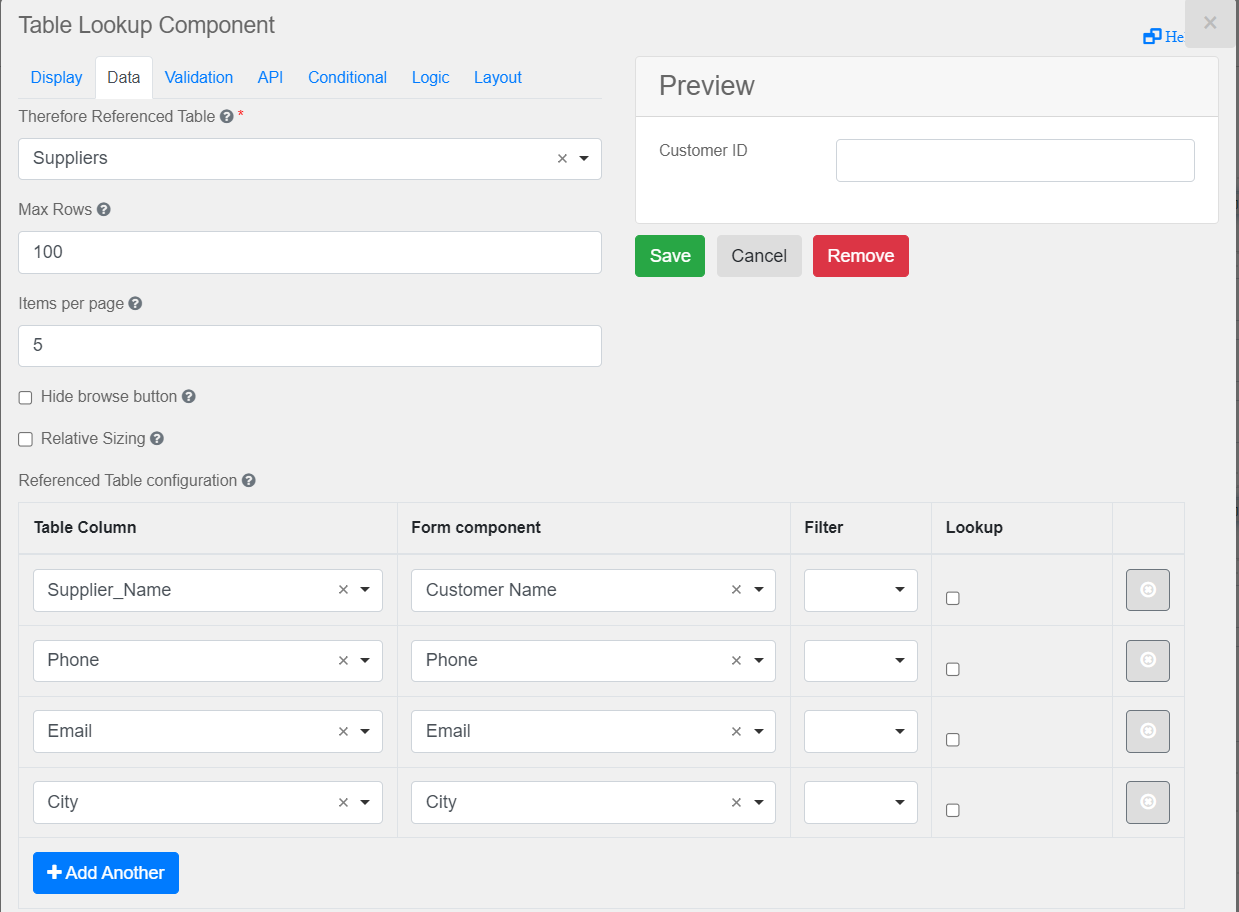

Therefore™ Referenced Table

Select one of the Referenced Tables.

Max Rows

The maximum number of rows returned from the server.

Items per page

Define a default value for how many items should be displayed on a page. Choose an integer between 5 and 100.

Hide browse button

Hides the browse button making the popup window inaccessible.

Relative Sizing

Enable Relative Sizing to adjust the width of Referenced Table columns.

Hide Index Column in Results

Hides the index column in Table Lookup.

Referenced Table configuration

Configure the Referenced Table.

Table Column and Form component

Choose a column of the selected referenced table from the drop-down menu. Then, choose a form field from the drop-down menu under Form component to map the referenced table column to.

Filter

Use a Filter for the Referenced Table. Please find a tutorial on using filters for Referenced Tables following the link below:

Tutorial: Referenced Table filters

Size

Define the width of the table columns. Choose a value from 0-16 from the drop-down menu. The sizes correspond to the following column widths:

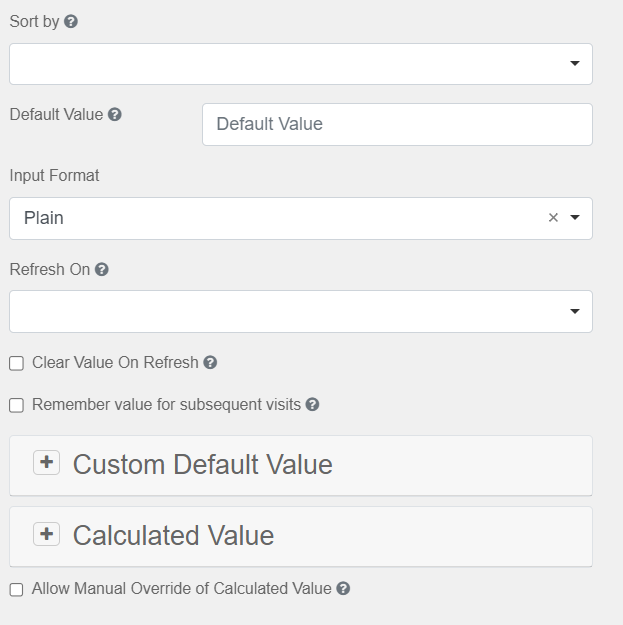

Sort By

Sort by selected table column.

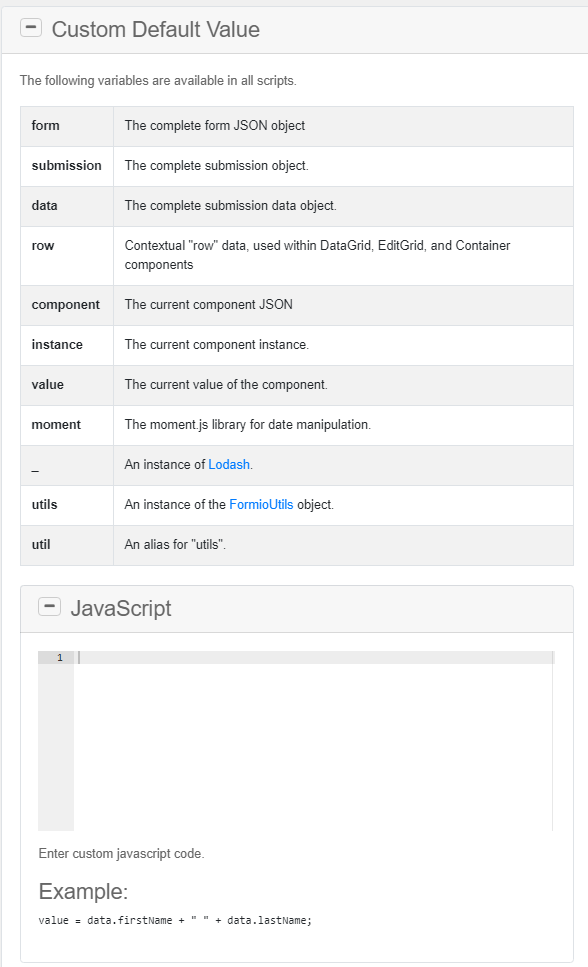

Default Value

This will be the value for this field, before user interaction. Having a default value will override the placeholder text.

Input Format

Select from Plain, HTML or Raw formats.

Refresh On

Refresh data when another field changes.

Clear Value On Refresh

When the Refresh on field is changed, clear this components value.

Remember value for subsequent visits

Stores the Default Value for future reference.

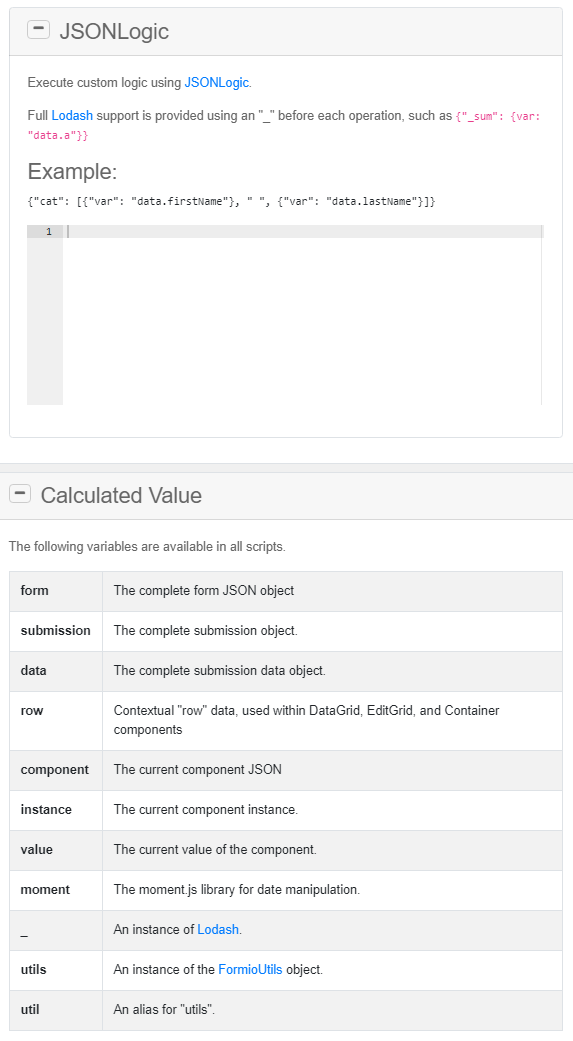

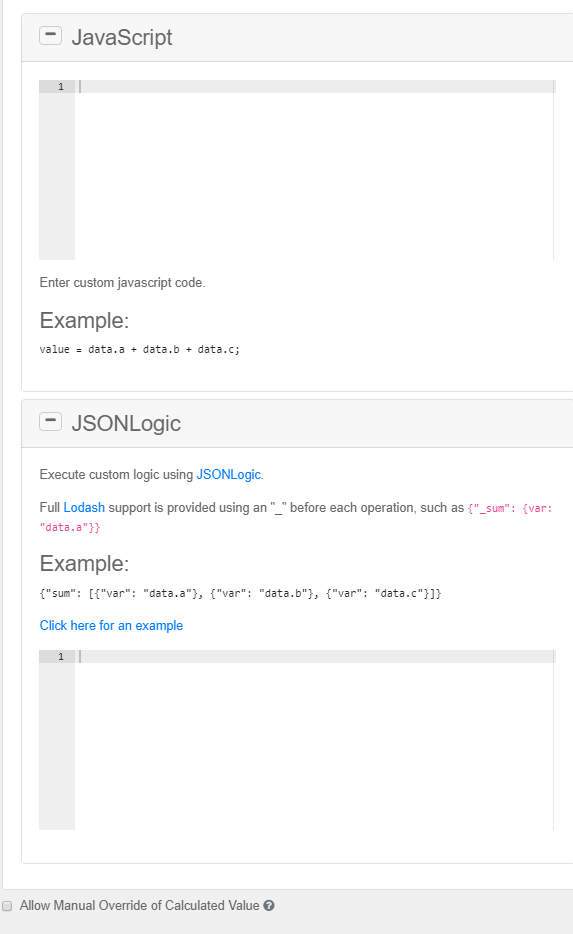

Allow Manual Override of Calculated Value

Will allow the user to manually override the Calculated Value.

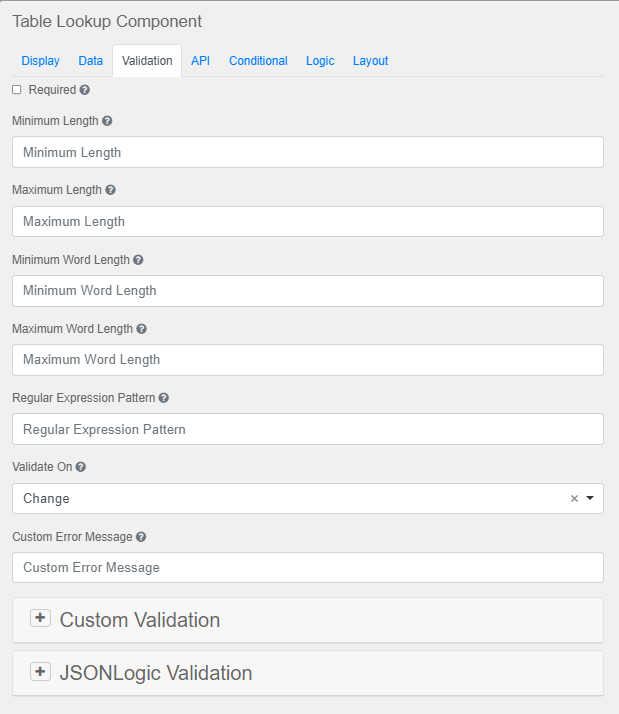

Required

A required field must be completed before a form can be submitted. Indicated by an asterisks on the form.

Minimum Length

The minimum length required that this field must meet.

Maximum Length

The maximum length required that this field must meet.

Minimum Word Length

The minimum word length required that this field must meet.

Maximum Word Length

The maximum word length required that this field value must pass before the eForm can be submitted.

Regular Expression Pattern

The regular expression pattern test that this field

Validate On

Determines when this component should trigger front-end validation.

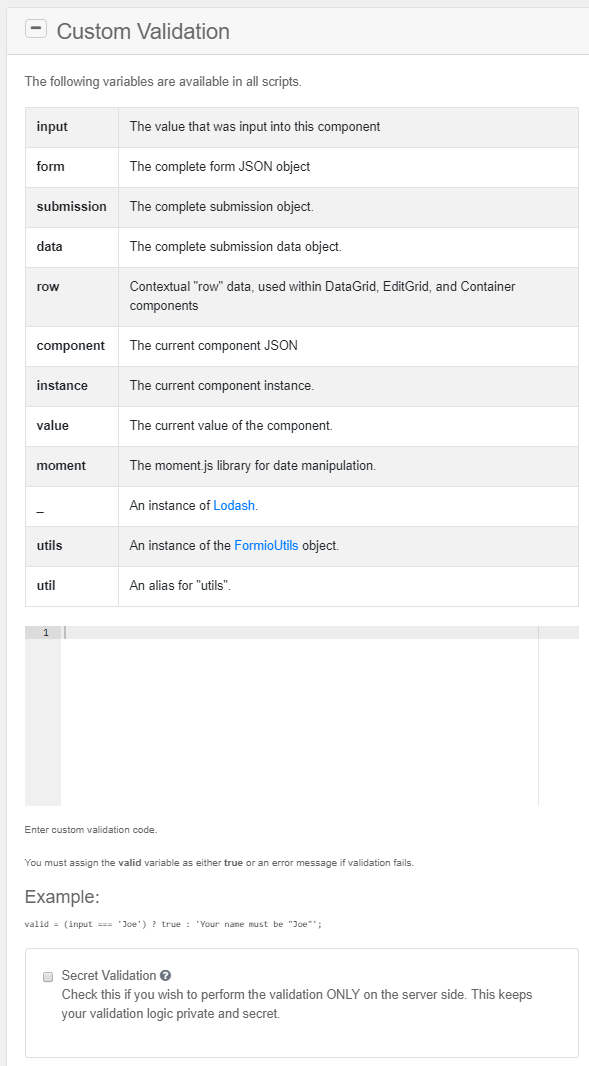

Custom Error Message

Custom error message displayed when an error occurs.

Secret Validation

Check this to perform validation on the server side only; this maintains the privacy of the validation logic.

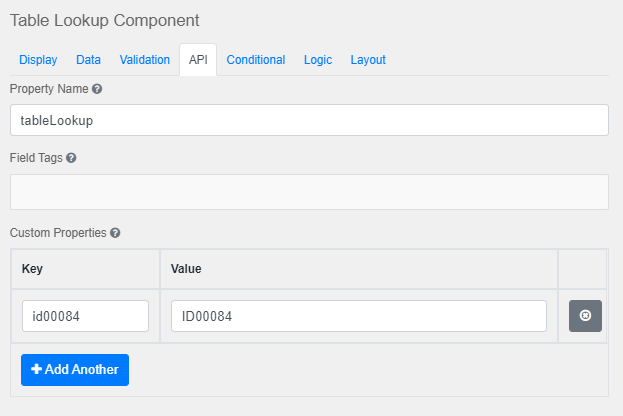

Property Name

Names the field for the API endpoint.

Field Tags

Tags the field for use in custom logic.

Custom Properties

Enables the configuration of any custom properties for this component.

Add Another

Adds another configuration row.

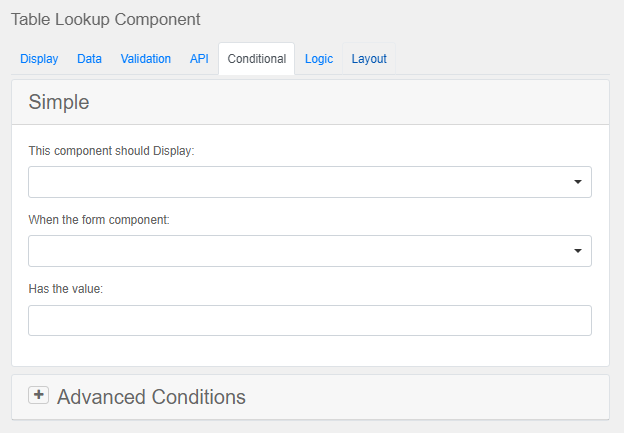

This component should Display

Select between 'True' or 'False'

When the form component

Select from the list of form components.

Has the value

Enter a value for the condition.

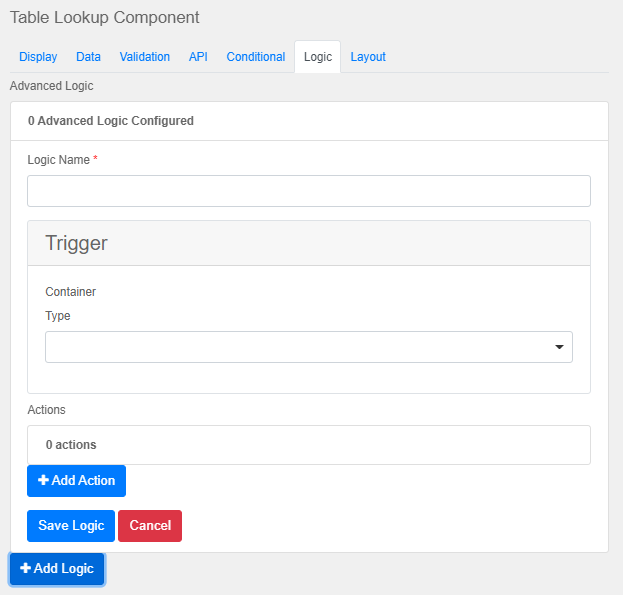

Logic Name

Gives the logic a label

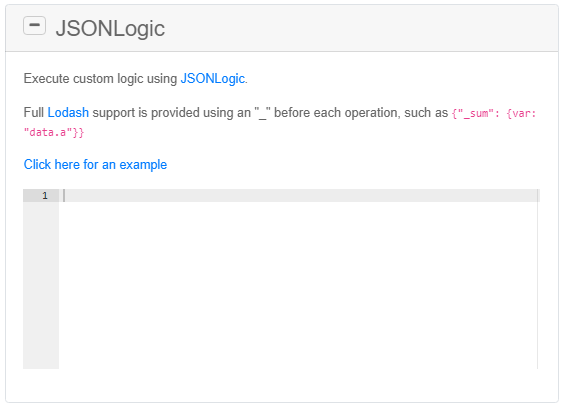

Type

Select between Simple, Javascript, JSON Logic or Event.

Add Action

Adds another action to the logic.

Save Logic

Saves the current logic list.

Cancel

Cancels the current logic list.

Add Logic

Adds another Logic for configuration.

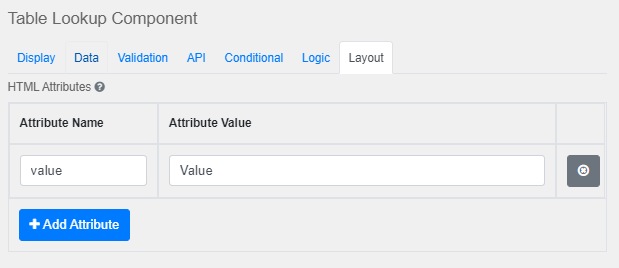

HTML Attributes

Provide a map of HTML attributes for the component's input element.

Attribute Name

Name the HTML attribute.

Attribute Value

Add a value for the HTML attribute.
