Network Attached Storage (NAS) and Redundant Array of Inexpensive Disks (RAID) typically use standard hard drives. They can, and should be configured to provide redundancy (e.g. RAID 1 - Mirroring).

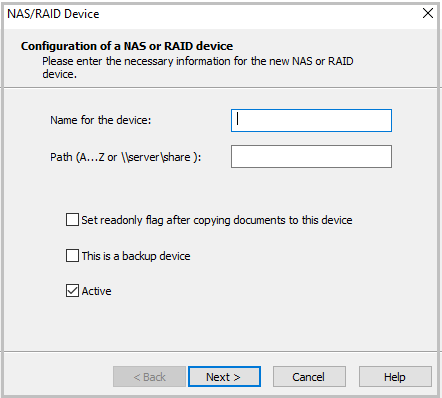

SD_R_Storage_Devices_NewNASRAID_001

Name for the Device

Name of the device (defined by the Thereforeā„¢ Administrator).



Path(A..Z or \\server\share)

The path for the device. This needs to be accessible from the Thereforeā„¢ Server.



Set readonly flag after copying documents to this device (checkbox)

Documents copied to the device are set to read only to prevent them from being edited.



This is a backup device (checkbox)

When this is checked the device is used as a backup storage device (as apposed to a primary storage device).



Active (checkbox)

When this checkbox is ticked the device is active, and can be used by the Thereforeā„¢ Server. By default, this box is checked. Devices can be set to inactive if maintenance needs to be performed.



Clicking on Next opens the Storage Area dialog.

SD_T_Storage_Defining_Storage_Devices_003

Edit

Edit an existing Storage Area.



Delete

Delete an existing Storage Area.



Add

Add a new Storage Area.

SD_R_Storage_Devices_NewNASRAID_002

Name

A name for the Storage Area.



Folder Name

Will be automatically filled in.



Media Name

Will be automatically filled in.



Media Pool

Will be automatically filled in.
