Reference > Thereforeā„¢ Dynamic Web View

URL Actions

Scroll

There are a number of actions that can be performed in the Thereforeā„¢ Dynamic Web View using URLs. In turn, these could be triggered by a 3rd party application that has the needed integration capability.



Where to find unique IDs

In order for the URL actions to work, the unique IDs of categories, workflow processes, index data fields, etc. are needed.



Category IDs and workflow process IDs

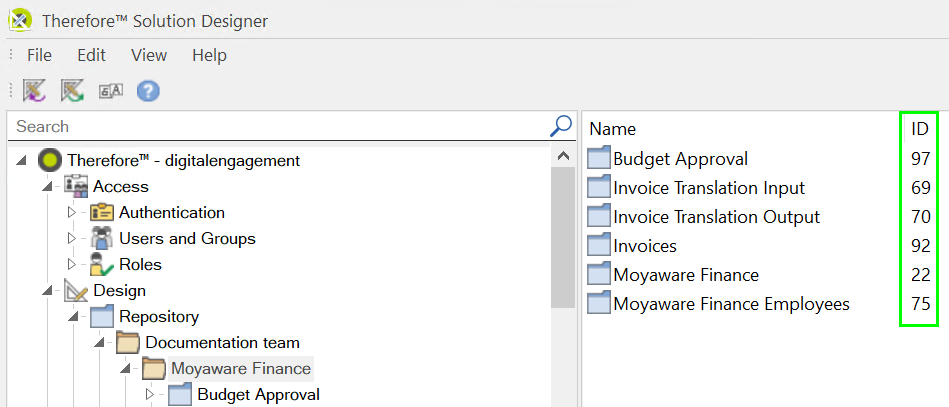

Category IDs and workflow process IDs are displayed in the Thereforeā„¢ Solution Designer. Go to the repository and click on the folder containing the category or workflow process to find out their ID.

TDWV_urlactions_001

Field IDs

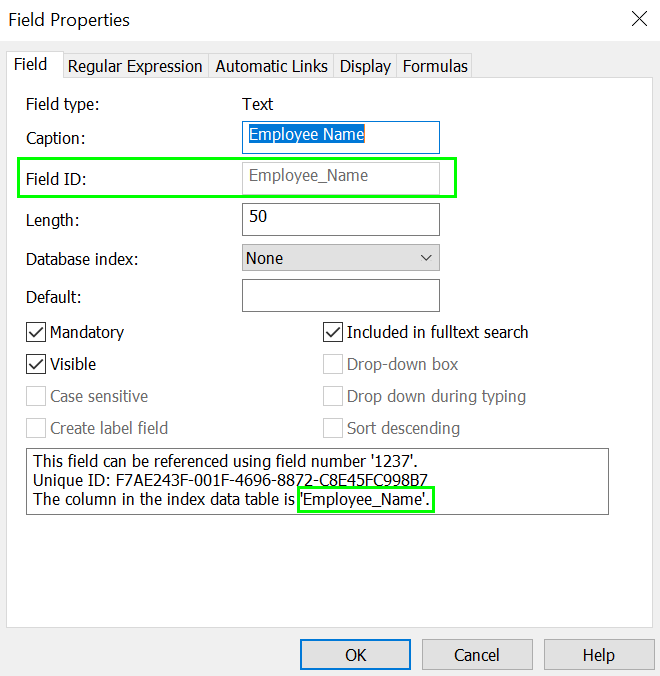

The unique field ID for an index data field can be found in the Thereforeā„¢ Solution Designer. Right-click on the category containing the index data field and select 'Open Category' to open the category definition. In the category definition, right-click on an index data field and select 'Properties' to open the Field Properties dialog. There, you can find the field ID.

TDWV_urlactions_002

Ad-hoc Task IDs, Document IDs, and workflow instance IDs



Search for the ad-hoc task, document, or workflow instance in any Thereforeā„¢ client (such as Thereforeā„¢ Navigator, Thereforeā„¢ Dynamic Web View or Thereforeā„¢ Go) to find out their unique IDs. The unique IDs are called "Task No.", "Document ID, and "Instance No." respectively.



List of URL actions


Open a workflow process

URL pattern:


https://server/ip/TWA/tdwv/#/workflows/X



Replace 'X' with the workflow process ID.

Example:



https://server/ip/TWA/tdwv/#/workflows/6



Open a certain workflow instance

URL pattern:



https://server/ip/TWA/tdwv/#/workflows/instance/X/1



Replace 'X' with the workflow instance number.



Optionally, add '?v=Y' to access different version numbers by setting Y to the version you wish to open.



Example:



https://server/ip/TWA/tdwv/#/workflows/instance/X/1



Look up a specific document

URL pattern:



https://server/ip/TWA/tdwv/#/document/X



Replace 'X' with the document ID.



Optionally, add '?v=Y' to access different version numbers by setting Y to the version you wish to open.



Example:



https://server/ip/TWA/tdwv/#/document/626?v=2



Create a new document in a specific category

URL pattern:



https://server/ip/TWA/tdwv/#/document/new/X



Replace 'X' with the category ID for the category you'd like the document to belong to.



Example:



https://server/ip/TWA/tdwv/#/document/new/67
