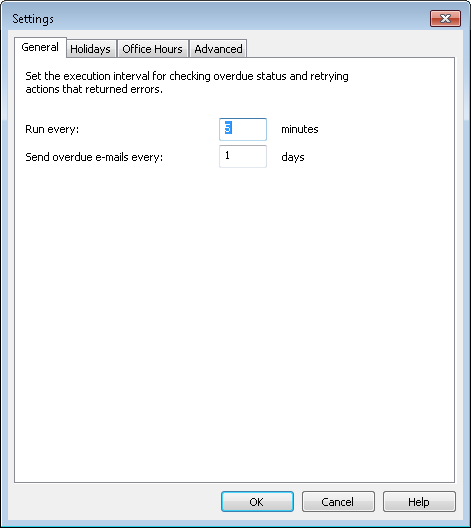

Run Every

Set the execution interval for checking overdue status and retrying actions that returned errors.



Send Overdue Mails every

The interval for sending overdue e-mails. (e.g. If this is set to 2 days, overdue emails will be queued in the "Outbox" until this period is over, and will then all be sent together).

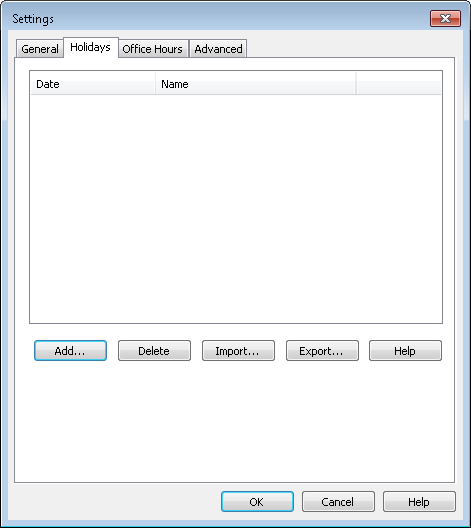

Holidays Tab

Holidays can be specified which will be excluded when calculating a task's duration and overdue notifications.

SD_R_Connectors_Workflow_Workflow_Settings_001

Delete

A holiday definition can be deleted.



Import

A holiday definition (XML file) can be imported.



Export

Export a holiday definition as an XML file.



Add

Adds a new holiday definition.

SD_R_Connectors_Workflow_Workflow_Settings_002

Date

The date of the holiday can be typed in (format is as per system default) or chosen from the graphical calendar.



Name

The holiday can be given a name, but this is not mandatory.



Recurs every year

Automatically adds the selected date as recurring for the next 50 years.

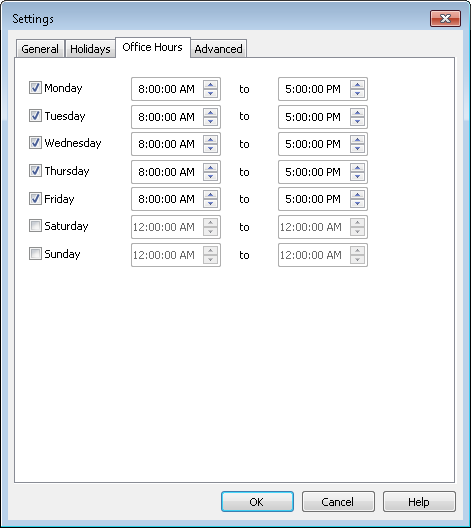

Office Hours Tab



This defines the standard working hours and is used to calculate task durations and when overdue e-mails should be sent.



For example in the case where office hours are set for Monday - Friday, from 8am - 5pm (9 hour work day), if a user is assigned a task with a duration of 18 hours at 8am on Monday, the task will be due on Tuesday at 5pm, since the user's workday is 9 hours long.

SD_R_Connectors_Workflow_Workflow_Settings_003

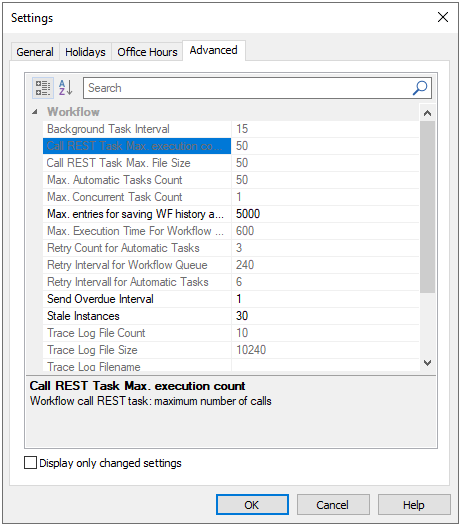

The Advanced tab allows modification of some settings and additional high-level settings in a single, central location. For information on a certain setting, select it to display information in the pane below the list.

SD_R_Connectors_Workflow_Workflow_Settings_004



Event

Description

Default

Background Task Interval

Run the workflow task for sending overdue notifications and processing automatic tasks every x minutes

15

Call REST Task Max. execution count

Workflow call REST task: maximum number of calls

50

Call REST Task Max. File Size

Workflow Call REST task: maximum file size for uploading (files MB)

50

Max. Automatic Tasks Count

Maximum number of automatic tasks which are allowed to be processed in a row without a manual task being executed.

50

Max. Concurrent Task Count

Number of automatic workflow tasks executed concurrently

1

Max. entries for saving WF history as PDF

Maximum number of entries a Workflow history can have for converting it to PDF. If this threshold is exceeded, the workflow history will be added as TXT.

5000

Max. Execution Time for Workflow DLLs

Maximum execution time for a workflow DLL in seconds. If exceeded the execution of the DLL is aborted.

600

Retry Count for Automatic Tasks

Number of times an automatic task will be retried before being suspended.

3

Retry Interval for Workflow Queue

Time (minutes) to wait until retrying workflow instances for spoolfile type documents that failed the last time.

240

Retry Interval for Automatic Tasks

Retry interval for failed automatic workflow tasks (hours).

6

Send Overdue Interval

Send overdue notification once more after x days.

1

Stale Instances

After x days of not progressing in a workflow, an instance is considered stale* and will be processed less frequently, and never during office hours.

30

Trace Log File Count

The maximum number of trace log files.

10

Trace Log File Size

The maximum file size of the trace log file (kb).

10240

Trace Log Filename

The trace log filename.


Trace Logging Level

The trace logging level of the workflow engine.

None

Workflow ServerNo

ServerNo of the Thereforeā„¢ Server responsible for processing automatic tasks and sending notification emails.

1



info

*Stale instances are only processed once per day and outside of the set office hours. This is an independent state from the overdue state.

Note:

Grayed out fields are not configurable and are automatically managed in Thereforeā„¢ Online-
