Workflow design is via a graphical interface using tasks which can be dragged and dropped onto the design pane. These tasks are then joined using transitions, which are again dragged and dropped from the toolbar.  The select item is selected by default and allows objects in the design pane to be selected, moved and configured. A context menu can be displayed by right-clicking your mouse while it is over a blank section of the right-hand pane.

SD_R_Connectors_Workflow_Workflow_Design_001

Process Properties

Displays the process properties. ( SD_R_Workflow_WorkflowDesign_002 icon on the toolbar).



Process History...

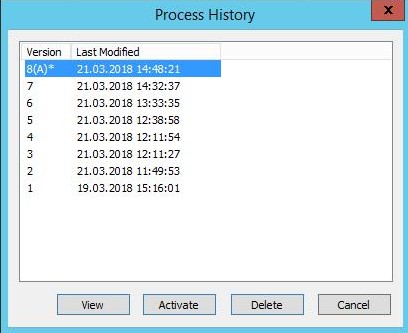

Thereforeā„¢ workflow includes an integrated revision control system. This lets you update a process definition and save it as a new version. Different versions of the same process can run at the same time. This menu-item will display a revision history of the process including version number and a timestamp when the process was checked in.  The latest version is marked with a * and the currently active version is marked with (A). Note that older versions can also be modified as well as viewed. Any version can be set as the active version. ( History icon on the toolbar). Older process versions can be deleted if no instance has ever used the selected version or if all instances under the selected version have either been deleted or archived.

SD_R_Workflow_004

Copy Selected

Highlighted tasks, and their associated transitions are copied. Multiple tasks/transitions can be highlighted by selecting them with your left mouse button while holding down the CTRL key.



Delete Selected

Highlighted tasks, and their associated transitions are deleted. Multiple tasks/transitions can be highlighted by selecting them with your left mouse button while holding down the CTRL key.



Delete All

Deletes all tasks and transitions between the Start and End tasks. Note the Start and End tasks are not deleted.



Display Conditions

Toggles whether a transition's condition will be displayed on the transition.



Zoom In

Enlarges the image size of the Workflow Design pane.  ( SD_R_Workflow_WorkflowDesign_003  icon on the toolbar).



Zoom Out

Reduces the image size of the Workflow Design pane. (SD_R_Workflow_WorkflowDesign_004 icon on the toolbar).



Zoom To Fit

Best-fit of the entire workflow process in the design pane. ( SD_R_Workflow_WorkflowDesign_005 icon on the toolbar).



Auto-Layout Process

All task and transitions will be automatically positioned.



Auto-Layout Transitions Only

Only transitions will be automatically re-positioned, tasks are not effected.



Language

Switch the language of the workflow.



A toolbar is also provided:



SD_R_Workflow_003

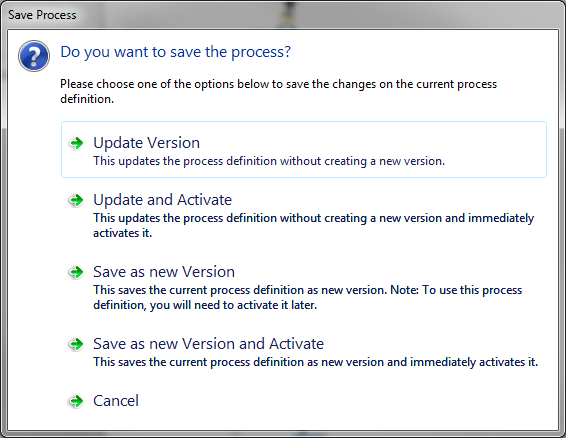

SD_R_Workflow_WorkflowDesign_006  The workflow can be saved.  A dialog will open which gives the user various options.



SD_R_Workflow_WorkflowDesign_002

Update Version

This option will be available if the process already exists. This will simply update the existing workflow without creating a new version.



Update and Activate

This option will be available if the version being saved is not the active version. This will update the workflow and set it as the active version.



Save as a new Version

This option will save a new version of a workflow without affecting the currently active in the Process History.



Save as a new Version and Activate

This option will create a new version and immediately activate it. Any currently running instances, however, will still be processed using the old definition.





SD_R_Workflow_WorkflowDesign_007  The workflow can be printed.



SD_R_Workflow_WorkflowDesign_003SD_R_Workflow_WorkflowDesign_004 The size of the workflow in the view pane can be enlarged or shrunk.



SD_R_Workflow_WorkflowDesign_005 Best-fit of the entire workflow process in the design pane.



SD_R_Workflow_WorkflowDesign_002 Displays the process properties.



History Displays the Workflow Process History



SD_R_Workflow_WorkflowDesign_008 Allows actions performed in the designer pane to be undone and redone.

SD_R_Connectors_Workflow_Workflow_Design_002

Properties

This opens the Properties dialog of the selected task.



Copy Task

Copies the selected task.



Delete Task

Deletes the selected task.
