Thereforeâ„¢ Help

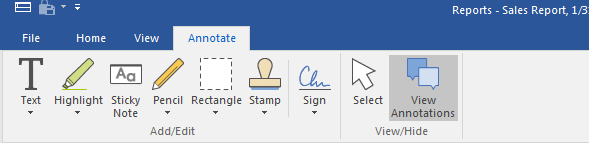

V_R_RibbonMenus_Annotate_PDFFiles_001

Text

Opens a text box where text can be added to the page.



Callout

Opens a text box with a movable pointer where text can be added to the page.



Highlight

Highlights the selected text.



Underline

Underlines the selected text.



Strikethrough

Puts a line through the selected text.



Insert Text

Click on a text location to add to a marker where new text can be added in a pop-up dialog.



Replace Text

Puts a line through the selected text and opens a pop-up dialog where new text can be added.



Sticky Note

Adds a note marker to a page. Text can be added in a pop-up dialog.



Pencil

A free-hand line can be drawn.



Eraser

Lines drawn using the pencil can be erased.



Rectangle

A rectangle can be drawn.



Ellipse

An ellipse can be drawn.



Line

A line can be drawn.



Polyline

Multiple connected lines can be drawn. Click to start drawing, drag the line, and click to add another point. Double-click to stop drawing.



Polygon

A polygon can be drawn. Click to start drawing, drag the shape, and click to add another point. Double-click to stop drawing.



Stamp

Adds a stamp image to the page.



Custom Stamp

Opens a browser dialog for selecting a .png or .pdf to use as a stamp.



Sign

Adds a digital signature to the file.

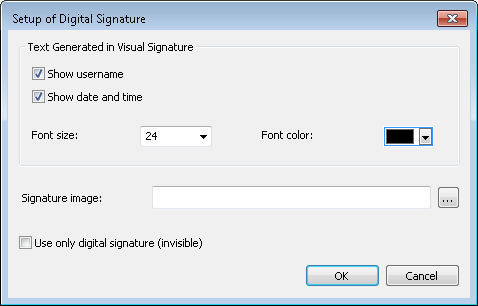

Settings

Allows setup of digital signature

V_R_RibbonMenus_Annotate_PDFFiles_002



Select

When set, the left mouse button may be used to select an existing annotation which can then be moved, resized or deleted as required. The right mouse button can be used to open the annotation properties.



View Annotations

When set, page annotations are displayed and the annotation toolbar icons are available for use. When de-selected, page annotation display is suppressed and all tool icons are grayed out.
