Conditions in transitions can be used for the following:



Intelligent routing from automatic tasks.

Dynamic filtering of options for manual tasks.



Some useful Operators

The syntax described is specific to Microsoft SQL Server. Although the syntax listed is general Structured Query Language, which should be compatible with other RDBMS, there may be minor differences between Microsoft SQL Server, Oracle, and IBM DB2. For operand syntax specific to Oracle and IBM DB2, refer to their product documentation.



Operator

Description

Comment

is NOT NULL

The index field is not empty

To stop the workflow proceeding before a user populates an index field.

=

Equal


<>

Not Equal


>

Greater Than


<

Less Than


>=

Greater Than or Equal To


<=

Less Than or Equal To


AND

Logical AND operator


OR

Logical OR operator


BETWEEN

Between an Inclusive Range


LIKE

Search for a Pattern


GetDate

Gets the current date






Macros...

Index data field macros can be also be used in conditions, including primary and dependent fields. Clicking the button Macros... opens a dialog with all available macros.



Table Conditions

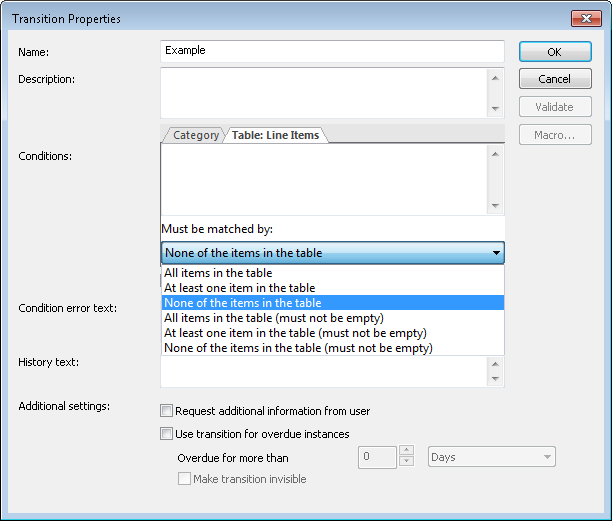

SD_R_Workflow_WorkflowDesign_Tasks_Transitions_Conditions_001

Line items in the 'Table: Line Items' tab will need to be matched by the following conditions:



Conditions

Definition

All items in the table

All items in the table are matched OR the table is empty

At least one item in the table

At least one item in the table is matched OR the table is empty

None of the items in the table

None of the items in the table are matched OR the table is empty

All items in the table (must not be empty)

All items in the table are matched AND the table is NOT empty

At least one item in the table (must not be empty)

At least one item in the table is matched AND the table is NOT empty

None of the items in the table (must not be empty)

None of the items in the table are matched AND the table is NOT empty
